ORVALDI 650-900SP
Energy under control. ORVALDI 650-900SP USB - versatile protection and performance, perfect for offices and homes.
CHARACTERISTICS:
- Microprocessor control.
- Easy, quick, and self-replaceable battery.
- Surge protection.
- Overload and short circuit protection.
- Wide range Boost & Buck AVR stabilization.
- Automatic diagnostics.
- Cold start (battery operation).
- Green Mode function for battery energy saving.
LIST OF APPLICATIONS:
- Household electronics
- Emergency lighting
- Alarm systems
- Telecommunications equipment
- Fiscal devices
- Servers and small networks (passive PFC)
DOWNLOAD:
Software - UPSilon2000
User Manual- Product card
"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Topology
Line-Interactive technology with microprocessor control ensures quick response to power changes and constant protection.
AVR
Advanced voltage regulation AVR allowing stable power supply even in case of large network voltage fluctuations.
LED Indicators
.png)
Intuitive LED indicators inform about the current operating state, network power and battery operation.
.png)

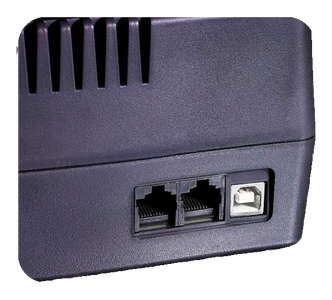

USB Communication
Ability to manage the UPS and monitor its status through a USP port, enhancing the device's funcionality.
Connection Outlets
Six output sockets including three with battery support and three with surge protection, provide versatile connection possibilities
Ease of Battery Replacement
Quick and Easy battery replacement without the need for tools, minimizing device downtime.
RJ45 Protection
Protection for two RJ45 sockets safeguards network devices from surges and ensures connection stability
Charger
Efficient battery charging to 90% capacity in approximately 8 hours ensures readiness for work in any situation
TECHNICAL DATA:
| Model | ORVALDI 1065SP | ORVALDI 1075SP USB | ORVALDI 1090SP USB |
| Capacity | 1000 VA /600 W | 1500 VA / 900 W | 2000 VA / 1200 W |
INPUT
| Voltage | 220/230/240 VAC | ||
| Voltage range | ±25% | ||
| Frequency | 50 Hz | ||
OUTPUT
| Voltage (DC Mode) | 220/230/240 VAC ±10% | ||
| Frequency | 50/60 Hz ±1 Hz | ||
| Waveform | Simulated sinewave | ||
| Steps of regulation | II Boost + I Buck | ||
| Transfer time | typical less than 6 ms | ||
| Socket | 2 USB communication ports, 2 RJ45 surge outlets, and 4 schuko round all-in-one power outlets | ||
BATTERY
| Voltage | 24 VDC | ||
| Type | 12V/7AH*2szt | 12V/9AH*2szt | 12V/9AH*2szt |
INDICATOR
| Indicator | LCD | ||
| Alarm | Batt, Mode, Low Battery, Overload, Fault, etc. | ||
FUNCTION
| Overload protection | Yes | ||
| Short circuit protection | AC fuse and electronic circuit | ||
| Auto-recharge | Yes | ||
| Auto-restart | Yes | ||
| Inteligent battery door | Yes | ||
PHYSICAL
| Dimensions mm | 343,5x135x208 | ||
ENVIROMENT
| Working temperature | 0- 40°C | ||
| Humidity | 0-90 % | ||
