You are here: Home - Line interactive UPS - ORVALDI "i" series 1000-2000VA
series: Line interactive UPS

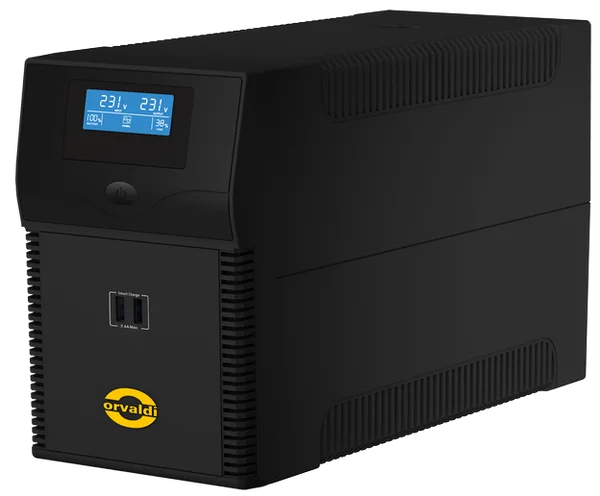

ORVALDI "i" series 1000-2000VA
Superior power for your needs. ORVALDI i1000-i2000LCD USB offers a Line-Interactive design perfect for small networks and individual servers.
.webp)
PRODUCT FEATURES:
- Advanced line-interactive UPS with full microprocessor control.
- "Green topology" saves 50% more energy.
- Built-in smart charger reaches 90% capacity in 5 hours.
- Excellent microprocessor control ensures high reliability.
- Double Boost and Buck AVR for voltage stabilization.
- Auto-restart when AC power returns.
- Simulated sine wave output.
- Cold start function.
- Clear LCD display indicating UPS status.
- Convenient 5V charger with 2 USB ports on the front panel (max. 2.4A).
LIST OF APPLICATIONS:
- Household electronics
- Emergency lighting
- Alarm systems
- Telecommunications equipment
- Fiscal devices
- Servers and small networks (passive PFC)
DOWNLOAD:
Software - UPSilon2000
User Manual- Product card
"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Topology
Line-Interactive design with full microprocessor control ensures consistent and reliable power, ideal for sensitive electronic equipment.
.jpg)
Display

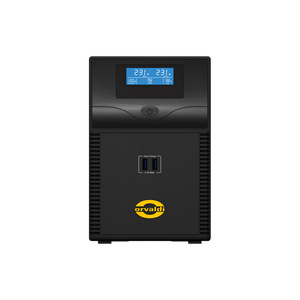

Clear LCD display provides immediate status updates and operational conditions of the UPS.
.jpg)
Connection Outlets

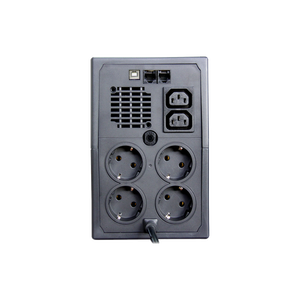

Equipped with 4 EU (Schuko) and 2 IEC320 C13 outlets, offering flexible connectivity for various devices.
Ease of Battery Replacement
Designed for easy battery replacement to ensure minimal downtime and maintenance.
Charger
Incorporates a smart charger with 2 USB ports, capable of fast charging at 5V max 2.4A, ensuring devices are quickly powered.
USB Communication
Features a USB port for convenient UPS management and monitoring, enhancing user control over power supply.
AVR
Dual Boost and Buck AVR for exceptional voltage stabilization, protecting against fluctuations.
Protection
Advanced protection features safeguard against overloads, network and telephone line disruptions.
TECHNICAL DATA:
| Model | ORVALDI i1000 | ORVALDI i1200 | ORVALDI i1500 | ORVALDI i2000 |
| Capacity | 1000VA/600W | 1200 V/720W | 1500VA/900W | 2000VA/1200W |
| INPUT: | ||||
| Voltage | 220/230/240 Vac | |||
| Voltage Range | -30%,+25% | |||
| Frequency | 50/60Hz (Auto Sensing) | |||
| OUTPUT: | ||||
| Voltage (DC Mode) | 220/230/240 Vac ±10% | |||
| Frequency Waveform | 50/60 Hz +/-1Hz Simulated sinewave | |||
| Steps of regulation | II Boost + I Buck | |||
| Transfer time | <6ms typical | |||
| Socket | 2 USB communication ports, 2 RJ45 surge outlets and 4 Schuko round all-in-one power outlest | |||
| BATTERY / CHARGER | ||||
| Voltage | 24 VDC | |||
| Type | 12V/7AH*2 pc. | 12V/7AH*2 pc. | 12V/9AH*2 pc. | 12V/9AH*2 pc. |
| Recharge time (to 90%) | 5h | |||
| INDICATOR | ||||
| Display | LCD | |||
| Alarm | Batt, Mode, battery, overload, fault, ect | |||
| FUNCTIONS | ||||
| Overload protection | Yes | |||
| Short-circuit protection | AC fuse and electronics circuit | |||
| Auto-recharge | Yes | |||
| Auto-restart | Yes | |||
| Inteligent battery door | Yes | |||
| PHYSICAL: | ||||
| Dimensions(mm) | 343x135x208 | |||
| ENVIRONMENTAL: | ||||
| Operating Temperature | 0 ~ 40°C | |||
| Humidity | 0 ~ 90% | |||
