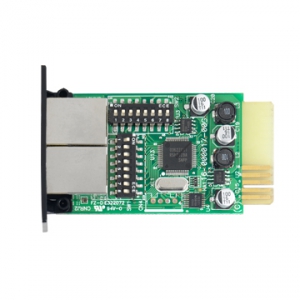

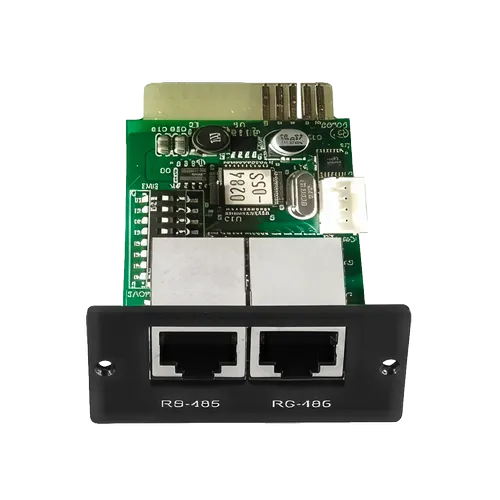

ORVALDI Modbus card
The Modbus card enables reliable communication between UPS systems or photovoltaic inverters and computers and supervisory systems using the standard Modbus RTU protocol. It is ideal for industrial environments and installations requiring central monitoring and control.
Main features:
- Modbus RTU communication protocol support via RS-485 port (isolated RJ45 port)
- Configurable baud rate: 2400 / 4800 / 9600 / 19200 bps
- Parity support: Even, Odd, None
- Support for reading and writing Modbus registers (Holding Registers)
- Low power consumption - maximum 0.5 W
- Compact dimensions: 84 x 43 x 14 mm
- Power supply 12 V
- Operation in wide temperature range: 0-40°C and humidity: 0-95%
The card is used in emergency power monitoring systems and photovoltaic installations, where reliable data transmission, central management and rapid diagnostics of equipment operation are required.
DOWNLOAD:
Modbus protocol"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Modbus card application

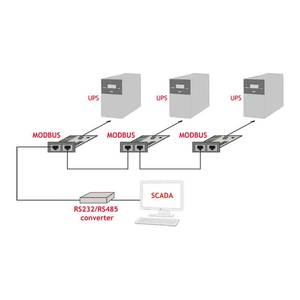

The Modbus card allows communication between multiple UPSs and the host system (e.g. SCADA) via the RS-485 bus. Each UPS is equipped with a dedicated Modbus card, which provides a communication interface. Data is sent from the devices to a computer via an RS232/RS485 converter for further processing and analysis in real time.

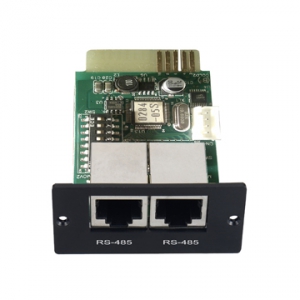

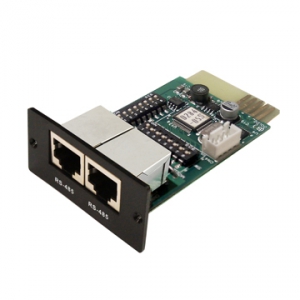

Product overview
TECHNICAL DATA:
| MODEL | Modbus |
| Protocol | Modbus RTU |
| Network Connection | RS-485 through isolated RJ45 port |
| Baud Rate | 2400 bps / 4800 bps / 9600 bps / 19200 bps |
| Parity | Even / Odd / None |
| Power input | 12 V |
| Net Weight (kg) | 34.7 g |
| Power consumption | 0.5 W max. |
| Operating temperature | 0~40°C |
| Operating Humidity | 0~95% |
| Dimension, DxWxH (mm) | 84 x 43 x 14 |
